TAB Series

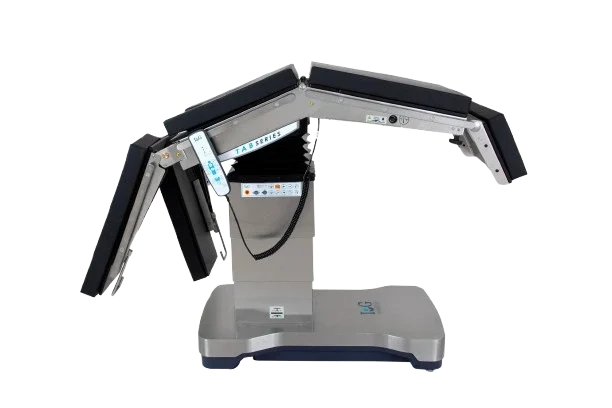

IG Operating Table TAB-300
The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features.
View product
LAM SeriesIG LAMII 900-16
LAM II Series-OptiVision
Our LAM Series surgical lights with advanced LED technology provide excellent illumination, a long service life to give you full support in OR.
- Technology
- LED
- Color temp.k
- 3500 4000 4500 5000 (optional)
- Luminance (Lux)
- 40klx,Ec,160klx
- Focusable light field size (mm)
- 200-300
01 / 04
Overview
Our LAM Series surgical lights with advanced LED technology provide excellent illumination, a long service life to give you full support in OR. For homogenous light in the surgery area, the streamlined ultra-thin design is optimized for Laminar flow.
Key features
- Compact design with shadowless lighting
- Controlling & sterile handle at the multifunction handle
- Adjustable illumination color temperature
- Up to 160Klux
- Electric and manual focusing
- Low power consumption and advanced energy control system
- More than 50,000h effective working life
- Optional: HD & 4k camera, TFT monitor, wall control panel
- Basic Configuration
- Low power consumption & heat emission
- User-friendly control concept
- Long working life, high reliability, and lower costs
- Optimal cleaning and disinfection conditions
- Compact design for easy operation
- Lighting depth regulation
- Lightweight construction (aluminium housing)
- Endo mode for different MIS environments
- Excellent colour restoration
- OR adapted colour rendering
- Large, homogeneous surface illumination
- Detachable handle of high-strength material
- Outstanding optical performance
- Optional with HD or 4K wireless camera
Technical specifications
As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.
- Technology
- LED
- Color temp.k
- 3500 4000 4500 5000 (optional)
- Luminance (Lux)
- 40klx,Ec,160klx
- Focusable light field size (mm)
- 200-300
- Diameter lamp housing (mm)
- 600
- MIS endoscopy lighting
- White light
- Depth of light (mm)
- > 1000
- Color of rendering index CRI (Ra)
- > 95
- Red color rendering index (R9)
- > 92
- Light head power comsumption
- < 80w
- Working life (hours)
- 60,000
